JPL-DS-0001 Javelina Propeller Laboratory LLC DATA SHEET · REV A

Quiver.

Open modular quadcopter platform · 25 kg MTOW · 5–8 kg payload
Abstract

An open, modular quadcopter platform for developers and operators. Designed collectively in the Arrow ecosystem; manufactured, flight-tested, and supported by Javelina Propeller Laboratory in Fort Davis, Texas. Three hot-swappable payload interfaces, distributed custom-PCB electronics, and centimeter-level RTK positioning.

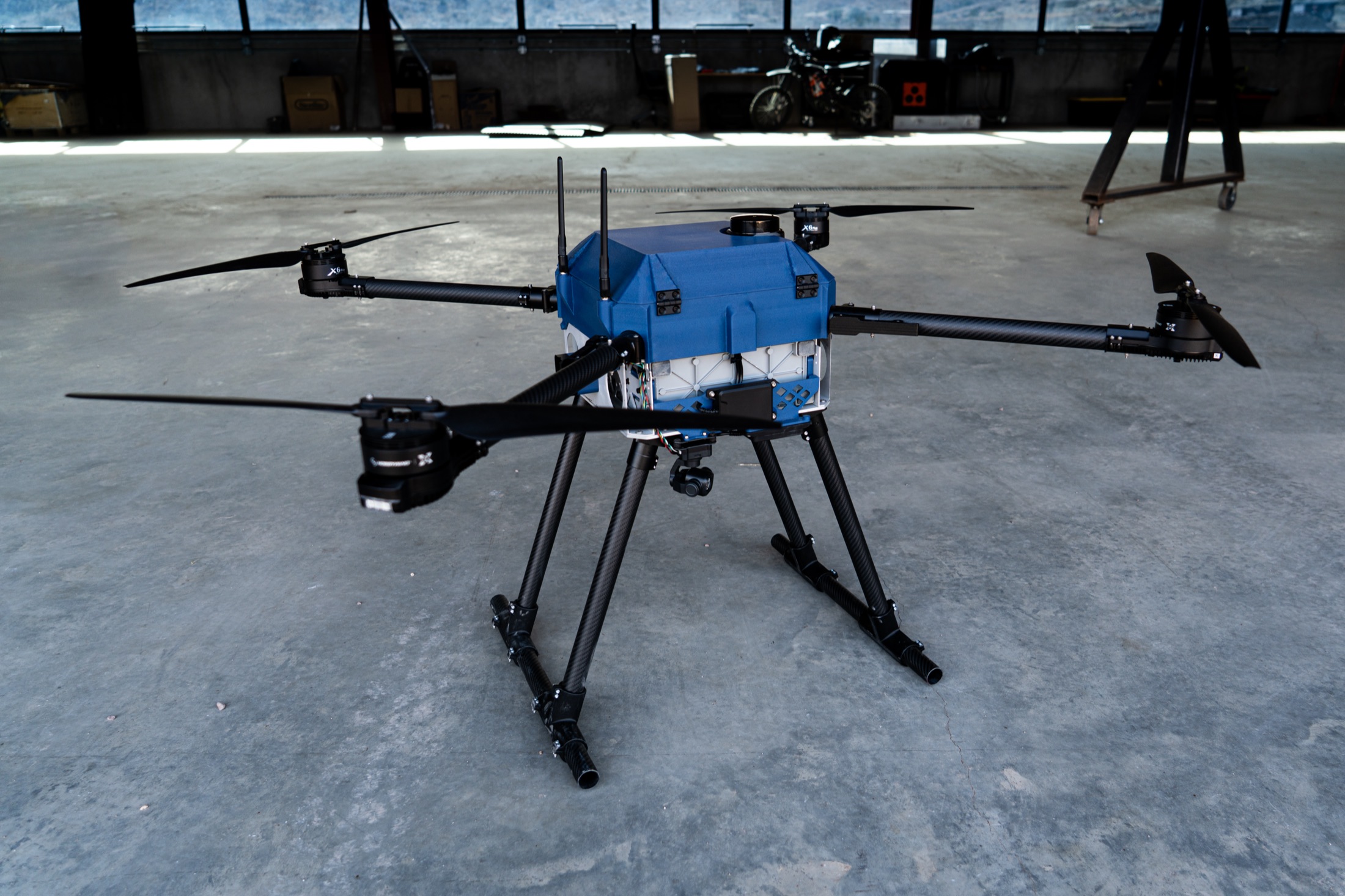

Quiver PT3 quadcopter, wide angle
FIG. 1 — QUIVER PT3, CURRENT PRODUCTION DESIGN. SCALE: ACTUAL

1.1 Specifications

  • TypeQuadcopter UAS
  • Max takeoff weight25 kg
  • Payload capacity5–8 kg
  • Hover endurance25–31 min
  • BatteryTattu 14S 30 Ah smart
  • Propulsion4× Hobbywing XRotor X6 Plus
  • Flight controllerPix32 V6 · ArduPilot
  • GNSSDual, RTK (F9P / Here4 + M9N)
  • AltimeterNanoradar NRA15 radar
  • Payload interfaces3 quick-release (bottom, L, R)
  • Interface power/dataRegulated power, CAN, Ethernet
  • Companion computerOptional Raspberry Pi
  • Remote IDBlueMark db201 (ASTM F3411)
  • Ground controlQGroundControl / Mission Planner

1.2 Architecture

1.2.1 Modular Payloads

Three quick-release attachment interfaces allow hot-swapping mission equipment without disturbing core electronics. Each interface carries its own Attachment Interface PCB with regulated power, CAN, and Ethernet.

1.2.2 Distributed Electronics

Four custom PCBs — Battery, Main, Flight Controller, and Attachment Interface — individually serviceable in the field. The battery board provides state-of-charge, temperature monitoring, and a kill switch.

1.2.3 Built for Weather

Sealed cockpit with rain canopies, drip-proof structures, and reverse-slope geometry for dust and water resistance. Folding motor arms bring it down to case-portable size.

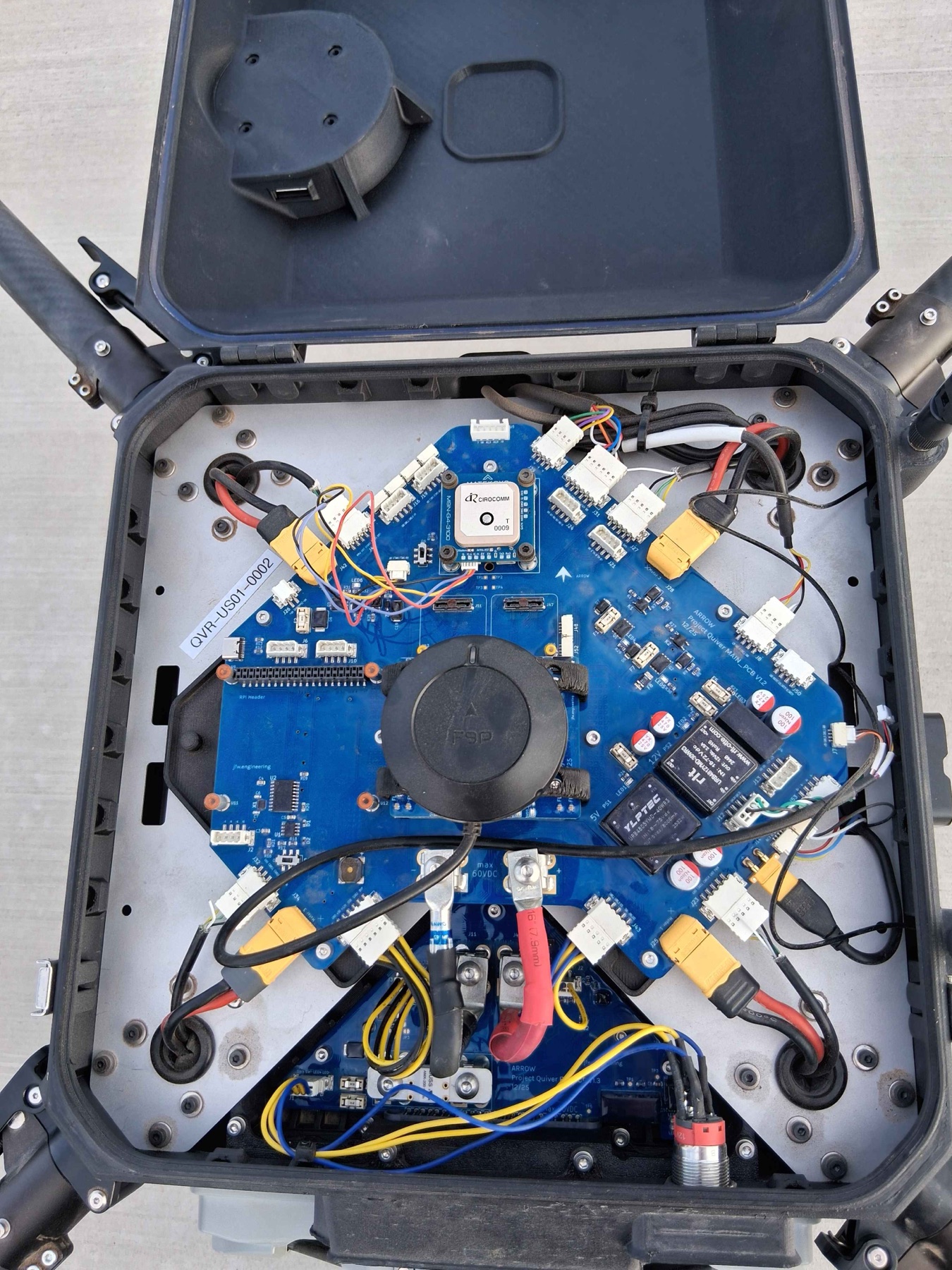

Quiver cockpit open, showing the Main PCB, GNSS, and power distribution
FIG. 2 — MAIN PCB V1.2, COCKPIT OPEN. S/N QVR-US01-0002.

1.3 Serialization & Identification

Every Quiver aircraft manufactured by JPL carries a serial number conforming to ANSI/CTA-2063-A. The serial embeds JPL's ICAO-assigned four-character manufacturer code, a length character, and a unique per-aircraft alphanumeric sequence. The same serial is programmed into the aircraft's Remote ID broadcast module and permanently marked on the airframe.

1.4 Open Hardware

Quiver's CAD, PCB designs (KiCad), ArduPilot configurations, and assembly documentation are published under the CERN Open Hardware Licence in the project-quiver repository. Full platform documentation lives at arrowair.com/docs/quiver.
